Check SKU, brand, dimensions and product image before ordering.
Maxview Vertriebs · SKU 87786

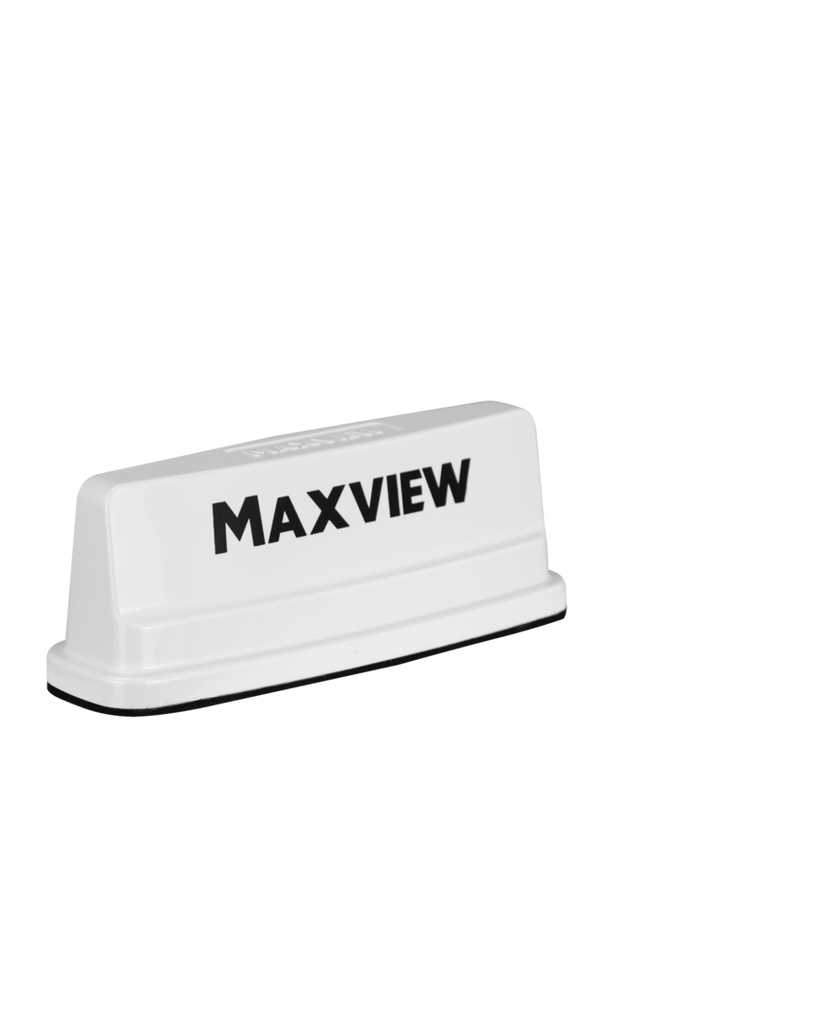

Maxview LTE Antenna SLIM 2x2 white
Maxview offers 3 powerful omnidirectional antenna types to meet your application or performance requirements. All antennas can be easily mounted in almost any position on the roof. All antenna types are passive omnidi...
In stock
Ready to order
LTE Antenna
Maxview Vertriebs
Before you buy
- Confirm that the SKU and product title match the part or equipment you need.
- Compare the product image with your existing part, installation point or vehicle setup.
- Check dimensions, voltage, connector type, material or mounting style where relevant.
- For replacement parts, compare the original reference and manufacturer details before ordering.
Secure Online Shopping
Priced products, online cart and checkout for a clear buying experience.
Germany-Based Store
Stahlor GmbH ships caravan, motorhome and camping products from Germany.
Product Information
Check SKU, compatibility, dimensions and manufacturer details before ordering.
Customer Support
For product questions, contact Stahlor before placing your order.
Maxview offers 3 powerful omnidirectional antenna types to meet your application or performance requirements.
All antennas can be easily mounted in almost any position on the roof. All antenna types are passive omnidirectional antennas.
Performance features:
•
Powerful antenna: specially developed for vehicles and optimised for operation in rural and remote areas
•
Omnidirectional reception: no antenna alignment necessary, mounted on the roof, reception guaranteed even with weak signals
•
5G antenna: Roam antennas (not all routers) are compatible with all 5G frequency bands and can be upgraded with a 5G router if required
•
Easy installation: self-adhesive 3M pad and a hollow bolt ensure quick, easy and waterproof roof mounting
•
Reliable data transmission: excellent and nearly lossless data transmission through high-quality connection cables with SMA connectors
•
Reception while stationary and while driving: optimised for use in almost all of Europe (depending on data provider contract) Antenna Specification:
•
Type: Omnidirectional MIMO antenna (Multiple In Multiple Out)
•
Frequency/Gain: 698-6000 MHz / 5.9 dBi - 8.8 dBi, includes all 3G/4G/5G frequencies
•
Connectors: SMA
•
Impedance: 50 Ohm
•
Power consumption: no
•
Cable length: 0.8 m as standard (extension cable available as optional)
•
Housing: Aluminium base plate, UV resistant ASA plastic
The different antenna types explained:
4x4 MIMO vs 2x2 MIMO:
With a 4x4 MIMO antenna, the data streams from 4G & 5G connections are increased by up to 100 % compared to a 2x2 MIMO antenna. However, with a 5G router, data streams of up to 1800 Mbps are achievable even with a 2x2 MIMO antenna.
The 4x4 MIMO antenna is supplied with 4 x SMA cables. The 2x2 MIMO antenna is supplied standard with 2 x SMA cables.
Campervan antenna (2x2 MIMO):
Specially developed for campervans. Due to its compact design, it can be mounted on or in the ribs of the campervan roof. This means the antenna takes up no valuable space on the vehicle roof. In addition, it is ideal for pop-up roofs.
Due to the compact size of the campervan antenna, it is not possible to install a 4x4 MIMO antenna.
Matching routers. The Roam range offers 3 router types to meet different performance requirements. The router is easy and quick to configure via the free app for Android and iOS operating systems
Roam 5G Router: 5G/4G CAT20, Max Speed 3.3Gbps
The ultimate solution for very demanding internet users with the latest 5G technology and available services (subject to 5G coverage).
Compatible antennas: Roam 4x4, Roam Campervan 2x2. Wi-Fi - MU-MIMO: 802.11.b/g/n/ac - 2.4GHz - 5GHz. 2 SIM cards. 5 x RJ45. Up to 150 users/devices
Dimensions (WxDxH): 132 x 45 x 270 mm (height incl. rod antenna). Weight 577 g.
Roam X Router: 4G CAT6, Max Speed 300Mbps
Ideal for heavy internet users e.g. for video conferences or large file uploads.
High data transfer guaranteed. Standard CAT6 4G router.
Compatible antennas: Roam 2x2, Roam Campervan 2x2. Wi-Fi - MU-MIMO: 802.11.b/g/n/ac - 2.4GHz - 5GHz. 2 SIM cards. 4 x RJ45. Up to 100 users/devices
Dimensions (WxDxH): 115 x 45 x 270 mm (height incl. rod antenna). Weight 550 g.
Roam Router: 4G CAT4, Max Speed 150Mbps
Ideal for general, simple internet use e.g. streaming films and social media.
Standard CAT4 4G router.
Compatible antennas: Roam 2x2, Roam Campervan 2x2. Wi-Fi - SISO: 802.11.b/g/n/ - 2.4GHz. 1 SIM card.
2 x RJ45. Up to 50 users/devices
Dimensions (WxDxH): 115 x 25 x 240 mm (height incl. rod antenna). Weight 125 g.
Technical data
| Colour specification | |
|---|---|
| Colour | Weiß |
| Product data unpackaged | |
| Weight | 0,342 kg |
