Pvolux UG · SKU 98094

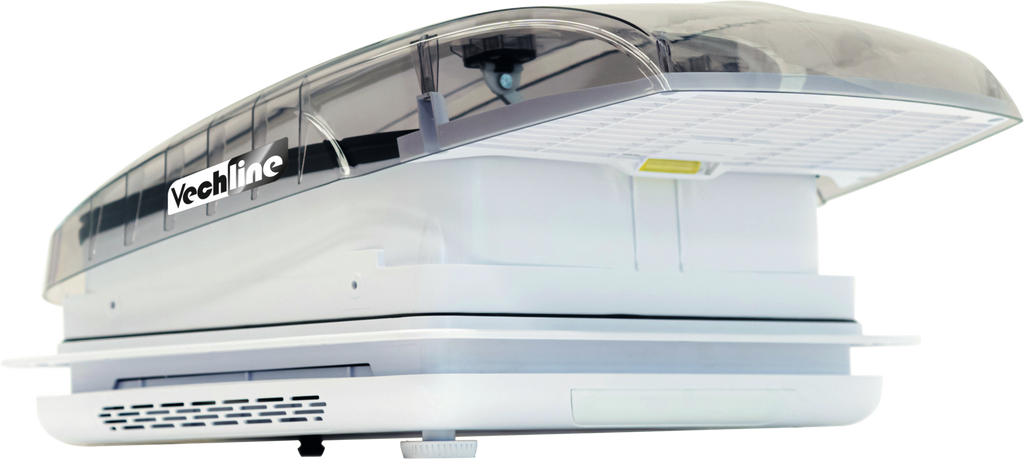

Vechline PLUS FAN Roof Vent smoke
The Vechline PLUS FAN is a 12 V roof ventilation system with high performance. With the flap open, it can be used for outside air intake or to extract inside air. With the flap closed, the Vechline PLUS FAN becomes a ...
In stock
Ready to order
Roof Vent
Pvolux UG
Before you buy
- Confirm that the SKU and product title match the part or equipment you need.
- Compare the product image with your existing part, installation point or vehicle setup.
- Check dimensions, voltage, connector type, material or mounting style where relevant.
- For replacement parts, compare the original reference and manufacturer details before ordering.
Secure Online Shopping
Priced products, online cart and checkout for a clear buying experience.
Germany-Based Store
Stahlor GmbH ships caravan, motorhome and camping products from Germany.
Product Information
Check SKU, compatibility, dimensions and manufacturer details before ordering.
Customer Support
For product questions, contact Stahlor before placing your order.
The Vechline PLUS FAN is a 12 V roof ventilation system with high performance. With the flap open, it can be used for outside air intake or to extract inside air. With the flap closed, the Vechline PLUS FAN becomes a roof ventilation system for circulating the interior air in your vehicle. Using the electronic thermostat, you can set the desired temperature. The ventilation system automatically changes operating mode depending on the selected temperature. The Vechline PLUS FAN is equipped with manual and electric opening as well as a remote control.
This device does not have forced ventilation installed.
Technical data:
• 10 fan speed levels
• Nominal voltage 12 V
• Operating voltage 9–16 V
• Power consumption at 12 V: 0.25 to 1.6 A (with blocked rotor up to 2.0 A)
• Full load output 20 W + 4 W (max. wind speed, full lighting)
• Noise level outside air intake: ≤ 29 dB (level 4), ≤ 47 dB (level 10)
• Noise level inside air extraction: ≤ 32 dB (level 4), ≤ 53 dB (level 10)
• Air volume max. 3,000 m³/h
• Protection class IPX4
• Includes mosquito net and blackout blind
• Roof opening 40 x 40 cm
• Roof thickness 27–80 mm
