ten Haaft · SKU 87761
ten Haaft Oyster Access Vision
Mobile internet like at home – even while driving. Building on the success of the proven Oyster® Connect, ten Haaft presents another antenna system: the Oyster® Access Inherited from the Oyster® Connect is the unique ...
In stock
Ready to order
Internet Antenna System
ten Haaft
Before you buy
- Confirm that the SKU and product title match the part or equipment you need.
- Compare the product image with your existing part, installation point or vehicle setup.
- Check dimensions, voltage, connector type, material or mounting style where relevant.
- For replacement parts, compare the original reference and manufacturer details before ordering.
Secure Online Shopping
Priced products, online cart and checkout for a clear buying experience.
Germany-Based Store
Stahlor GmbH ships caravan, motorhome and camping products from Germany.
Product Information
Check SKU, compatibility, dimensions and manufacturer details before ordering.
Customer Support
For product questions, contact Stahlor before placing your order.
Mobile internet like at home – even while driving.
Building on the success of the proven Oyster® Connect, ten Haaft presents another antenna system: the Oyster® Access
Inherited from the Oyster® Connect is the unique and extremely powerful concept with three separate WLAN modules and one LTE module. This continues to guarantee the best possible wireless connectivity, both inside and outside the vehicle!
The mobile hotspot provides a stable signal – even while driving.
You can browse comfortably in your motorhome, campervan or caravan – and additionally enjoy all the benefits of a "mobile home network".
Once set up, all your devices automatically connect to the Oyster® Access WLAN whenever they are within range – just like at home! This works both when parked (or driving) via the LTE connection, as well as when the Oyster® Access is connected to the local WLAN of a campsite or parking area.
Proven features retained, yet everything is new

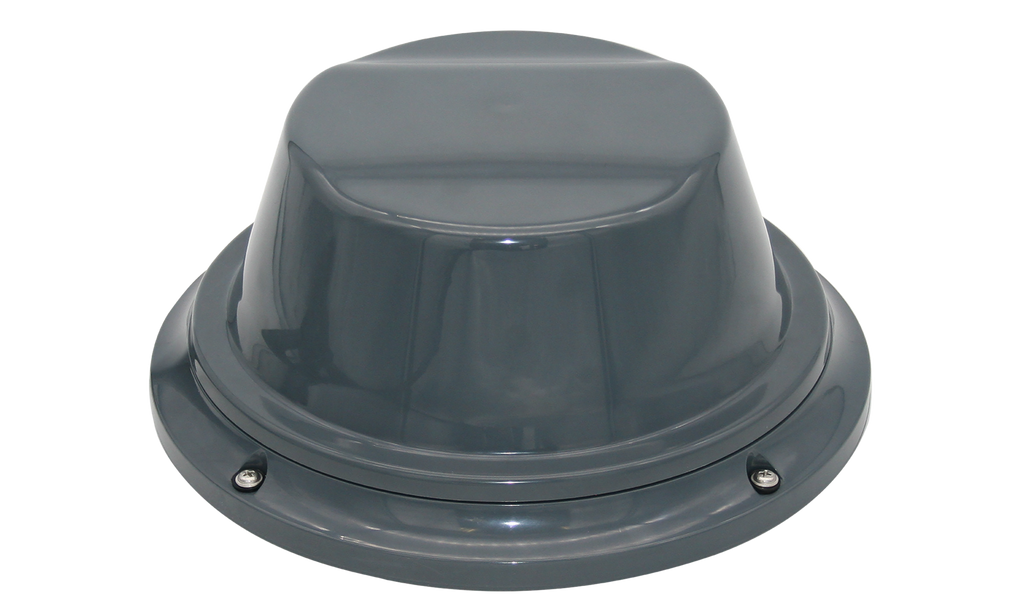

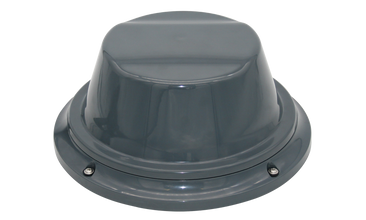

The Oyster® Access system consists of a control unit (router) installed in the vehicle and an external antenna mounted on the vehicle roof.
The connection between control unit and external antenna in the Oyster® Access is made classically via four particularly high-quality coaxial antenna cables each.
Unlike the Oyster® Connect, all electronics are concentrated in a single compact housing in the vehicle interior. This also allows the SIM card readers to be conveniently positioned on the front of the Oyster® Access device. New active thermal management ensures uninterrupted operation, even in particularly warm environments.
Advantages at a glance
- For all LTE / 5G bands from 698 MHz to 3800 MHz
- 6 powerful antennas for LTE and external WLAN connections
- Total of three WLAN modules (2x indoor unit, 1x outdoor unit) with full support for 2.4 GHz and 5 GHz WLAN connections
- LTE module optimised for use in the EMEA region, worldwide use on compatible frequencies is also possible
- 4x low loss HQ coaxial cable, highly flexible, low loss, length 2 m detachable
- Easy registration of your devices to the WLAN of the Oyster® internet antennas via QR codes and WPS
- Supports 2.4 GHz and 5 GHz band, for both internal and external WLAN connections
- All your devices can be in the mobile home network of the Oyster® internet antennas simultaneously
- Simple installation and space-saving design
- Comfortable operation via intuitive web interface in various languages
- Two SIM card readers
- With external WLAN and WireGuard™
SIM Card Note:
An SIM card is required for LTE operation, which is not included in the scope of delivery. The resulting connection costs and internet parameters (download / upload, international roaming) depend on the respective network operator.

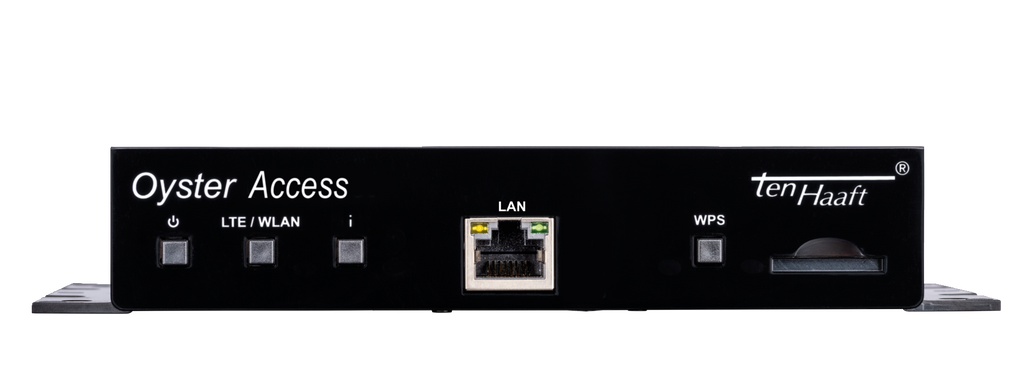

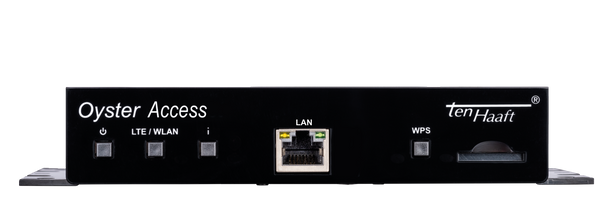

Oyster® Access Control Unit (Router)
The control unit (router) is located in the vehicle interior and serves as a WLAN access point, just as you know from home. In the compact housing, the 2.4 and 5 GHz WLAN antennas (2×2 MIMO) for the private home network are built in protected internally. Both frequency bands operate in parallel – so you can connect multiple mobile devices simultaneously on different bands with maximum data transfer.
Your devices (such as smartphone, tablet, laptop or smart TV) only need to be connected to the control unit's WLAN once. It also has a LAN connection and can thus also set up a private wired LAN network.
- Router with 2.4 GHz + 5 GHz dual band WLAN for the private network in the vehicle
- LAN connection for the private network
- 2.4 / 5 GHz WLAN module for connecting to an external WLAN via external antenna
- LTE module for use in the EMEA region (band B) and beyond
- Two SIM card readers for convenient use of different providers without changing cards
- Dynamic temperature control
SIM Card / Multi SIM Card
Generally, the Oyster® Access can be used with any SIM card that enables data traffic. Using a second card in addition to your existing mobile contract on your smartphone is financially advantageous. These second cards are often marketed under the name "Multi-SIM". This way you only have one mobile contract for the smartphone and the Oyster® Access. In 2017, roaming charges were abolished in Europe, which means that using mobile services abroad in Europe generally no longer incurs additional charges.
Now new with external WLAN and WireGuard™
- External WLAN: If desired, your own WLAN can now also be transmitted via the external antenna in a significantly wider radius around the vehicle. This WLAN can also be configured as an isolated guest network with its own WLAN name and password.
- Support for the WireGuard™ protocol (mark of WireGuard LLC): Enables a free, secure VPN connection to compatible routers (e.g. Fritz!Box) – for protected internet traffic in public WLANs
Technical data
| Product data unpackaged | |
|---|---|
| Weight | 1,7 kg |
