ten Haaft · SKU 88326
ten Haaft Oyster Connect Vision
Mobile internet like at home, even whilst driving. Benefits at a glance For all LTE bands from 698 MHz to 3800 MHz Optimal reception performance through placement of all relevant components in the outdoor unit 6 power...
In stock
Ready to order
Internet Antenna
ten Haaft
Before you buy
- Confirm that the SKU and product title match the part or equipment you need.
- Compare the product image with your existing part, installation point or vehicle setup.
- Check dimensions, voltage, connector type, material or mounting style where relevant.
- For replacement parts, compare the original reference and manufacturer details before ordering.
Secure Online Shopping
Priced products, online cart and checkout for a clear buying experience.
Germany-Based Store
Stahlor GmbH ships caravan, motorhome and camping products from Germany.
Product Information
Check SKU, compatibility, dimensions and manufacturer details before ordering.
Customer Support
For product questions, contact Stahlor before placing your order.
Mobile internet like at home, even whilst driving.
Benefits at a glance
- For all LTE bands from 698 MHz to 3800 MHz
- Optimal reception performance through placement of all relevant components in the outdoor unit
- 6 powerful and perfectly dimensioned antennas for LTE and external WLAN connections
- LTE module optimised for use in the EMEA region; worldwide operation on compatible frequencies is also possible
- Simple registration of your end devices to the WLAN of the Oyster® internet antennas via QR codes and WPS
- Three WLAN modules in total (2x indoor unit, 1x outdoor unit) with full support for 2.4 GHz and 5 GHz WLAN connections
- All your portable devices can be in the mobile home network of the Oyster® internet antennas simultaneously
- Easy installation and space-saving design
- Roof feed-through with 4 m long connection line (2 m / 6 m optionally available)
- Aerodynamic structure
- Convenient operation via intuitive web interface in various languages
- Two SIM card readers
- With external WLAN and WireGuard™

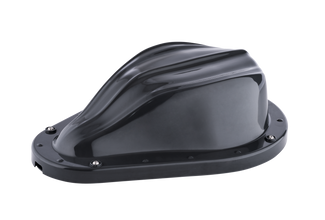

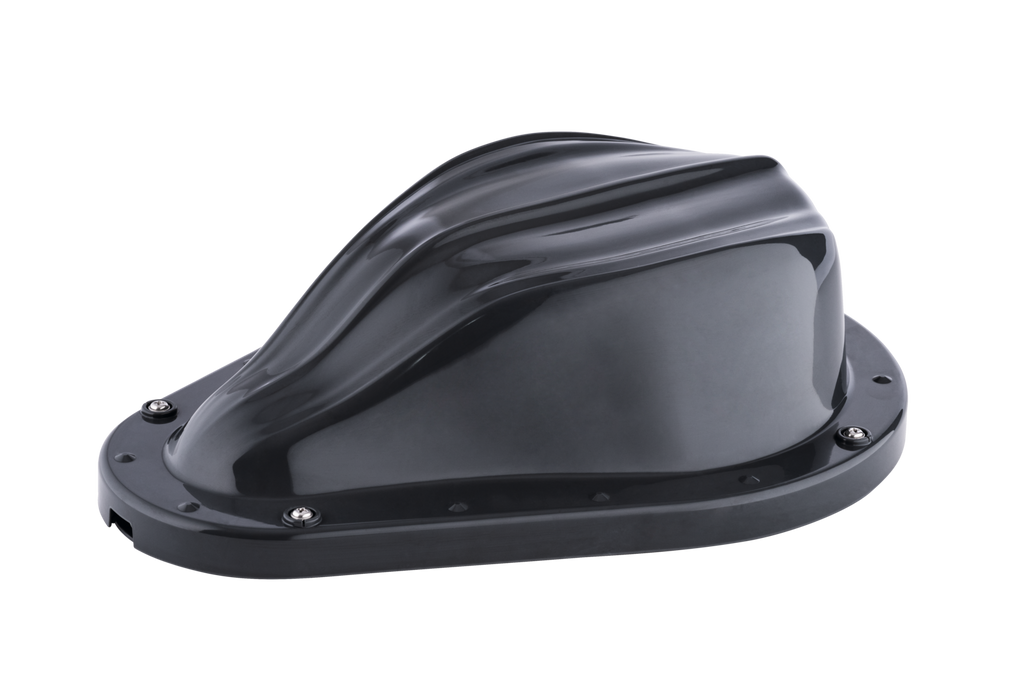

The Oyster® Connect – Outdoor Unit
The powerful antennas, both the LTE and a dual band WLAN module, are built directly into the outdoor unit of the Oyster Connect. The two SIM card readers are also housed in the outdoor unit, as they must be located near the LTE module for technical reasons.
Due to the immediate proximity of the antennas to the respective LTE or WLAN module, virtually lossless RF connection of the components to one another is possible. Even the weakest signals arriving at the antenna can be processed by the receivers, whilst signals from the transmitters reach the antennas at 100%. This concept enables the Oyster® Connect to achieve the technically highest possible radio range, since the use of signal-reducing coaxial antenna cables can be avoided. Instead, the connection between the indoor unit (router) and outdoor unit consists of a robust data cable, where the length has no effect whatsoever on system performance.

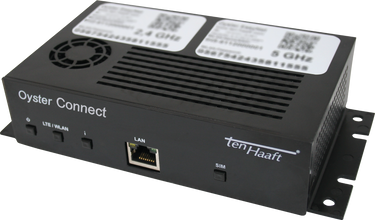

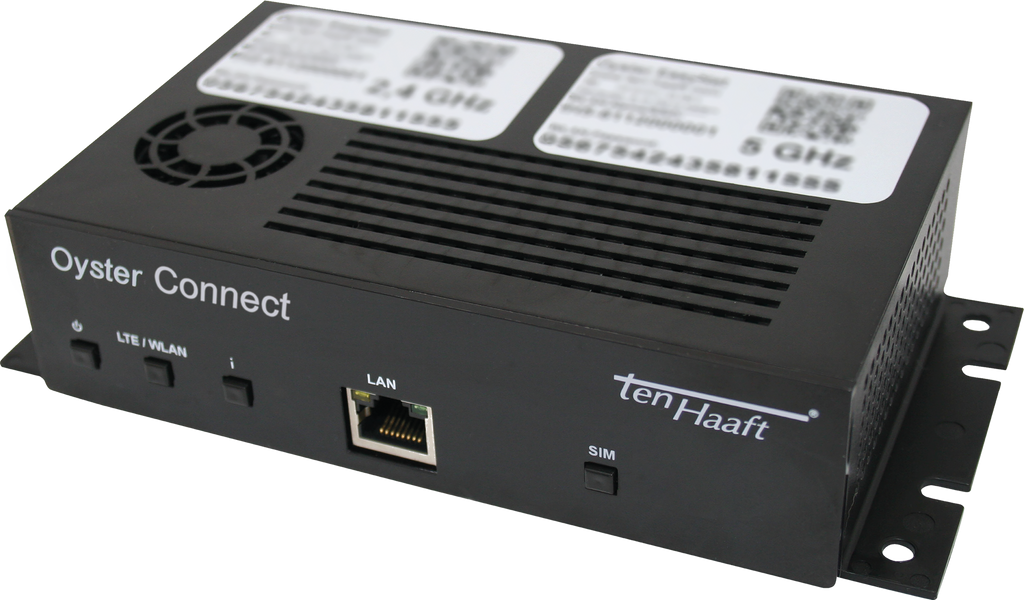

Oyster® Connect – Indoor Unit
The second component of the Oyster® Connect system, the indoor unit (router), is located inside the vehicle and contains all other components, such as powerful processors, two additional WLAN modules, control buttons, LEDs for status display and connections for power supply and LAN connections. The indoor unit (router) broadcasts a true 2.4 GHz + 5 GHz dual band WLAN in the vehicle interior, with which you can connect all your portable devices. The antennas for this are housed in a space-saving manner in the actively ventilated housing of the indoor unit (router).
SIM Card / Multi SIM Card
It is advantageous to use a multi SIM card, which you can insert into the card reader during installation. This way you only have one mobile contract for your smartphone and Oyster Connect. In 2017, roaming charges were abolished in Europe, so use of mobile services abroad in Europe generally incurs no additional charges.
The Oyster Connect concept provides for all transmission and reception units, including the card reader, to be located in the outdoor unit, which is mounted on top of the vehicle roof. This is the optimal mounting location because it is the only way to ensure that no signal degradation (= attenuation) occurs through the vehicle body and heat-protective glazing.
This also enables the use of a data cable instead of a coaxial cable for lossless data transmission from the outdoor unit into the vehicle interior to the indoor unit. Coaxial cables would result in attenuation losses. Depending on the quality and frequency of the cable, signal loss of 0.5 dB – 1.5 dB per metre occurs. Thus, with a 4 metre long coaxial cable, you would have to accept a signal loss of approximately 50% – 75%.
Now new with external WLAN and WireGuard™
- External WLAN: If desired, your own WLAN can now also be broadcast via the external antenna in a significantly wider radius around the vehicle. This WLAN can also be configured as an isolated guest network with its own WLAN name and password.
- Support for the WireGuard™ protocol (brand of WireGuard LLC): Enables a free, secure VPN connection to compatible routers (e.g. Fritz!Box) – for protected internet traffic in public WLANs
